316 Stainless Steel Oval Hawse Pipe With Cleat

The hawse pipe guides the rope through the boat's side, while the cleat secures the rope. This oval hawse pipe with cleat allows both rope threading and mooring to be completed at a single location.

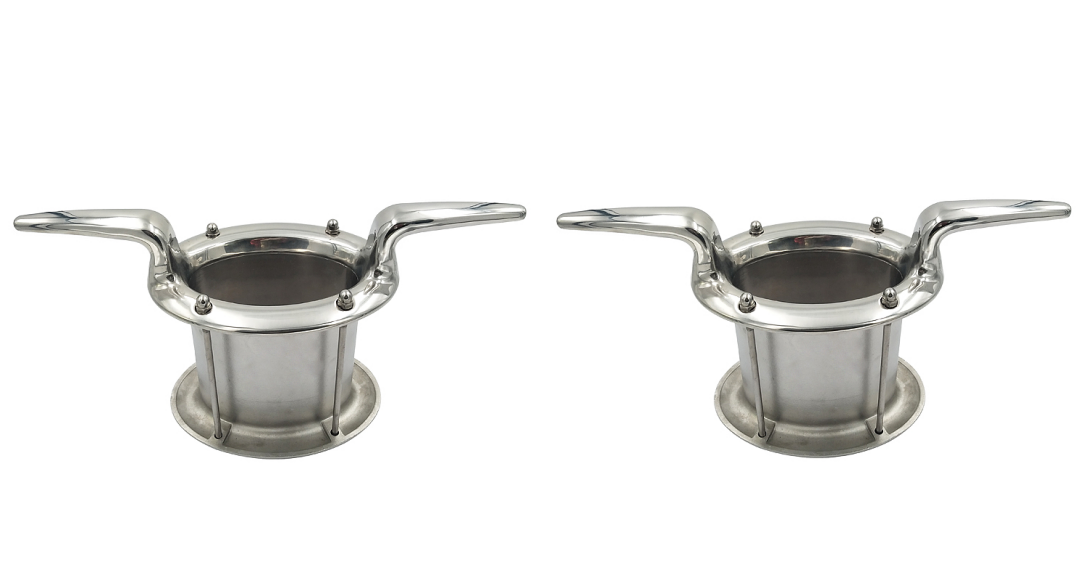

This oval hawse pipe with cleat is made of 316 marine-grade stainless steel and has a mirror-polished surface. The overall shape is oval, with a smooth and rounded transition, and there are no sharp edges.

The ordinary hawse pipe is only responsible for changing the direction of the rope. The rope needs to be pulled through the hawse pipe and then fixed to the cleats. During this process, the rope is prone to slipping off, thereby increasing the risk. The integrated design of the hawse pipe and the cleat allows the rope to pass through the hawse pipe and then directly wrap around the same accessory on the side. One hand can hold the rope while the other hand quickly completes the rope tying. Especially when operating with one hand, this design provides great convenience.

After the installation is completed, you can conduct a tension test using an old rope. Gradually apply force to the rope and observe whether there is any displacement, rotation or abnormal noise in the entire hardware.

During daily use, after each use, please do not leave the rope in the hawse pipe for a long time. The damp ropes will accumulate salt and sediment. These particles will wear down the surface of the stainless steel like sandpaper. At the same time, the continuous tension will cause the rope to press into the metal surface, creating indentations. After releasing the ropes, clean the hawse pipe thoroughly and wash away the salt with fresh water.

In addition, it is necessary to regularly inspect the base of the cleat. The connection point between the cleat and the main body of the hawse pipe is the area with the highest stress concentration. Pull the cleat and feel if there is any looseness or gap. If so, stop using immediately. Also, pay attention to the inner arc surface of the hawse pipe. Observe whether any patterns appear on the surface. These patterns are precursors of fatigue cracks. Once identified, do not attempt to repair them by grinding; instead, replace the hawse pipe.

This oval hawse pipe with cleat can significantly enhance the convenience of single-person operation. If you have any questions regarding this product, please contact our business team. In addition, we have other marine hardware accessories in stock that can promptly meet your requirements.
