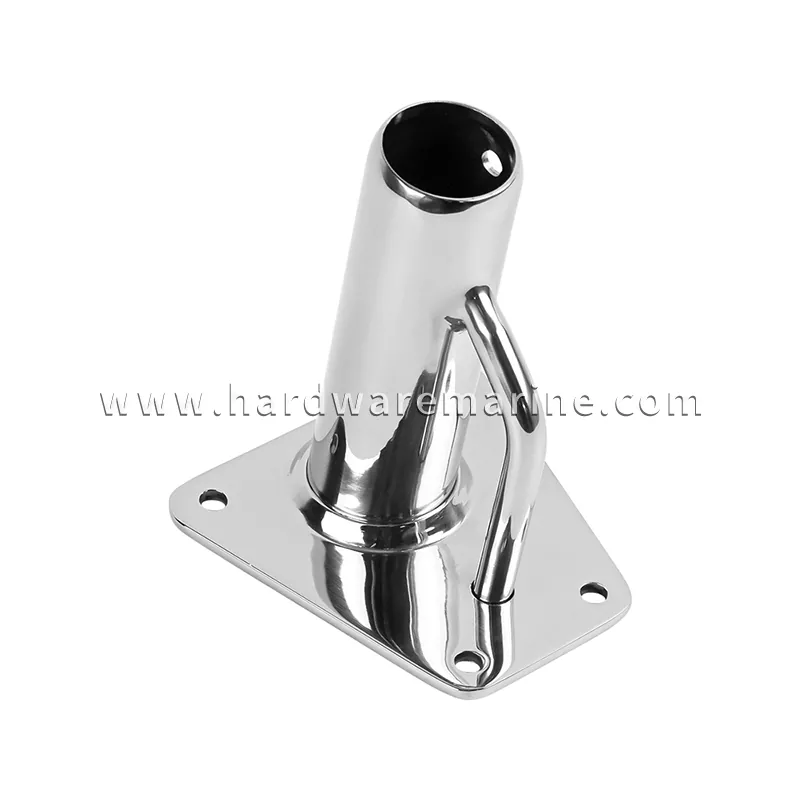

Stainless Steel Heavy-Duty Marine Stanchion Socket

Material: 316 Stainless Steel
Surface: Mirror Polished
Application: Ship,Yacht,Boat Accessories,Marine hardware,Sailing accessories

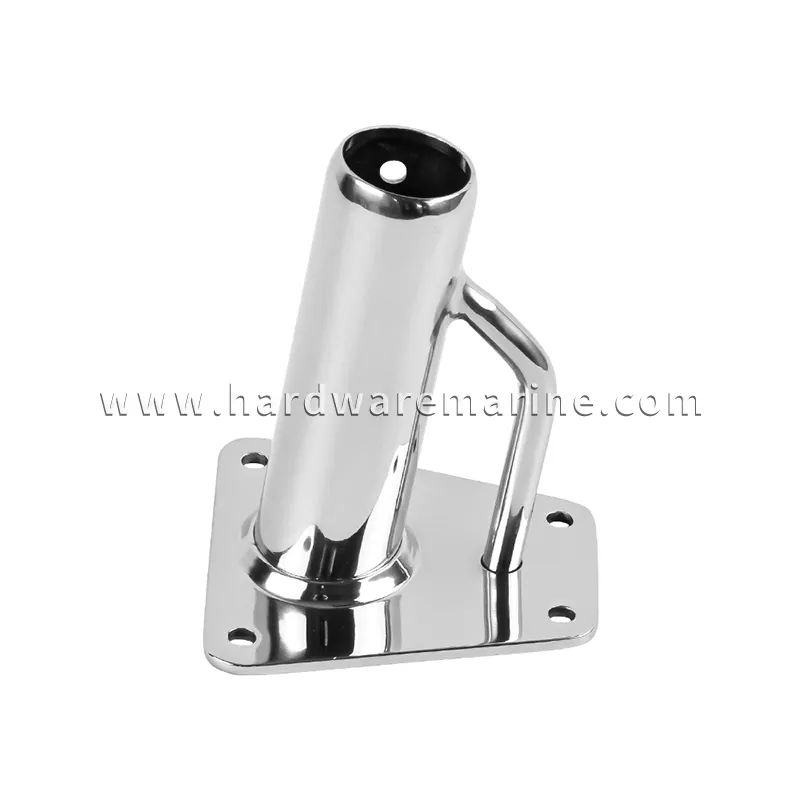

- The central sleeve is designed with a fixed incline (typically a 60-degree rake from the deck). This angle allows the stanchion post or flagpole to lean gracefully outward or toward the stern, which maximizes usable deck space while giving the vessel a sleek, streamlined appearance.

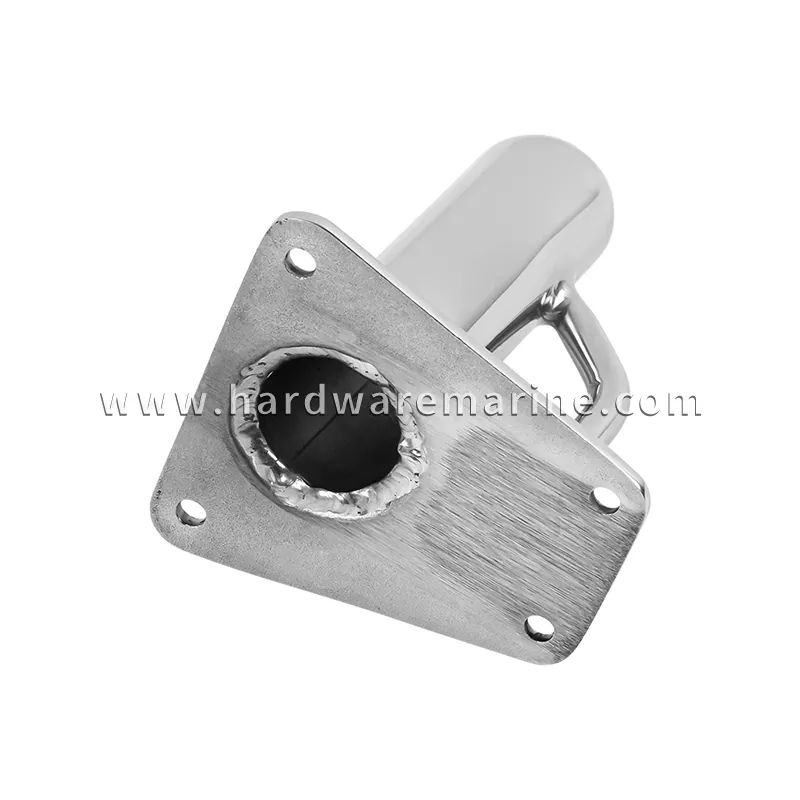

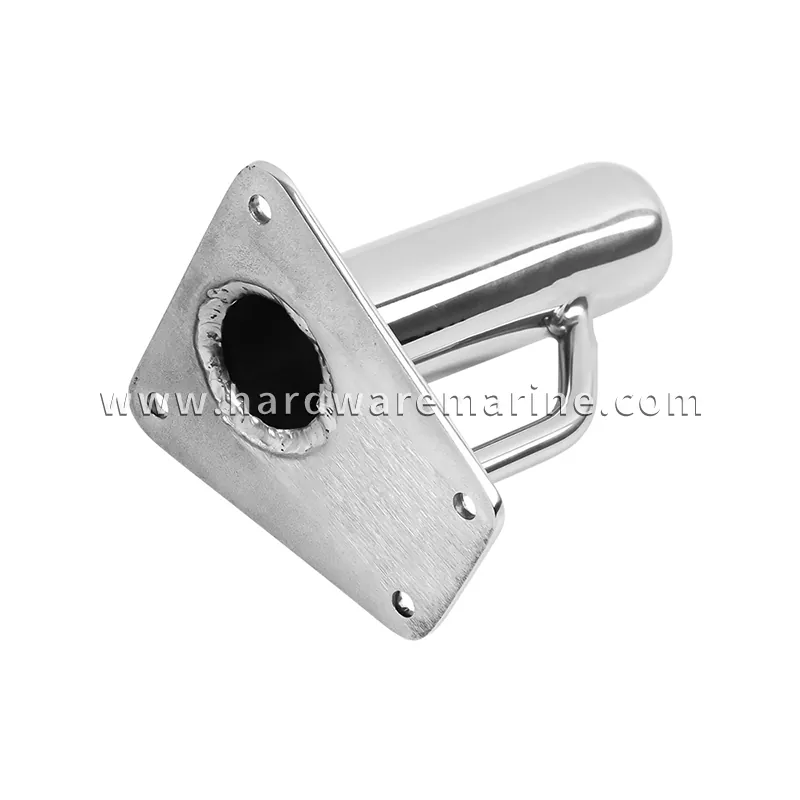

- The mounting flange is upgraded to a 4-hole design. Compared to a 3-hole triangular base, the rectangular footprint offers a larger surface area to distribute lateral tension and wind resistance more evenly into the boat's fiberglass deck or gunwale.

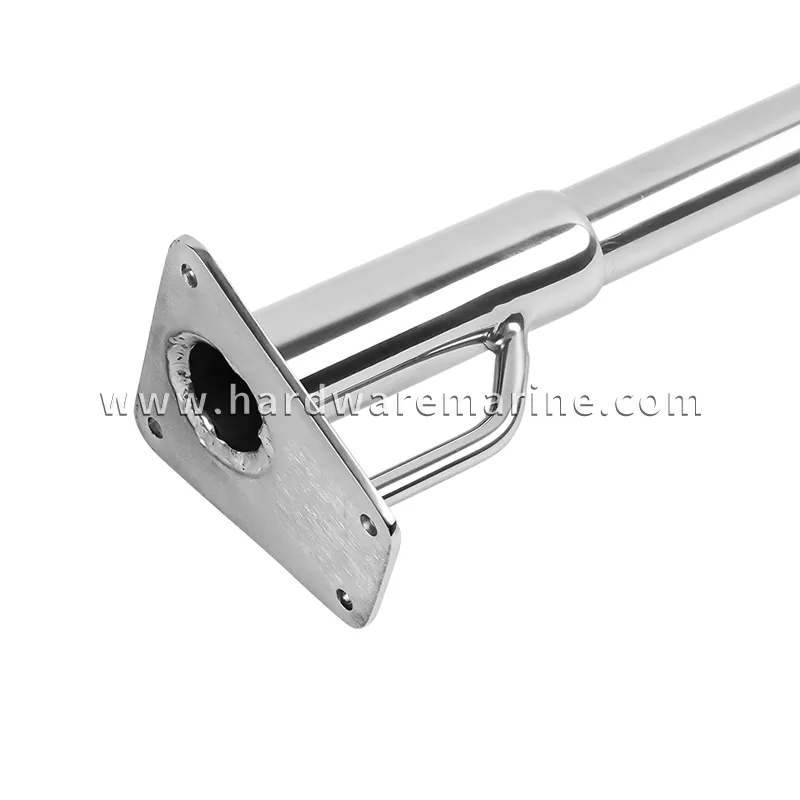

- A heavy-duty stainless steel support bar is welded to the side of the socket. This brace counteracts the extra leverage and shear force caused by the angled installation, keeping the rail exceptionally stable at high cruising speeds. Crew members also frequently use this bar as a handy tie-off point for fenders, lanyards, or safety nets.
- The entire unit is cast from premium marine-grade 316 stainless steel and finished with a flawless mirror polish. It provides maximum corrosion and pitting resistance against saltwater, high humidity, and harsh UV exposure.

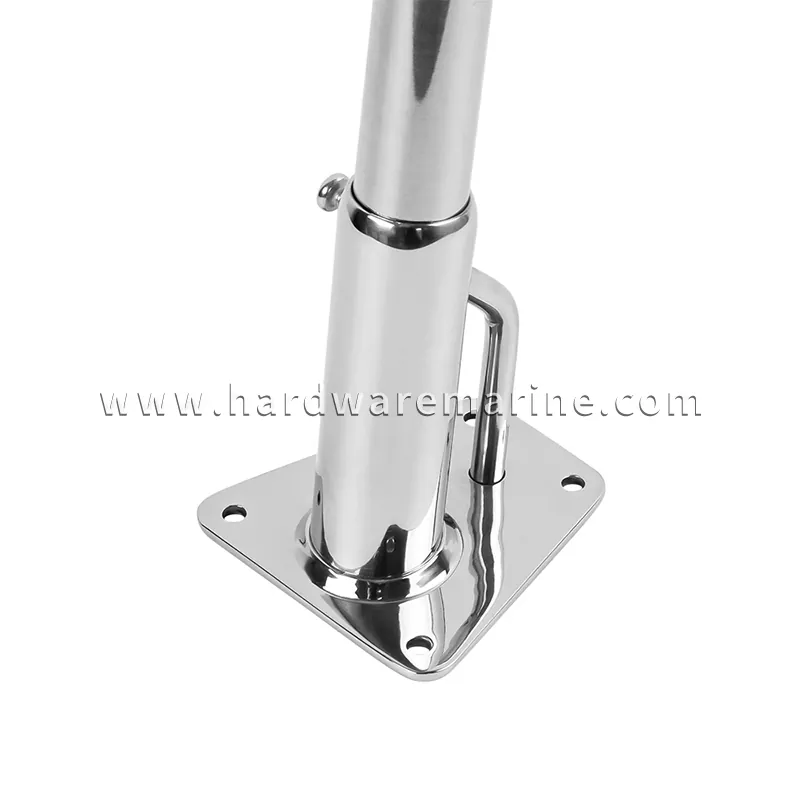

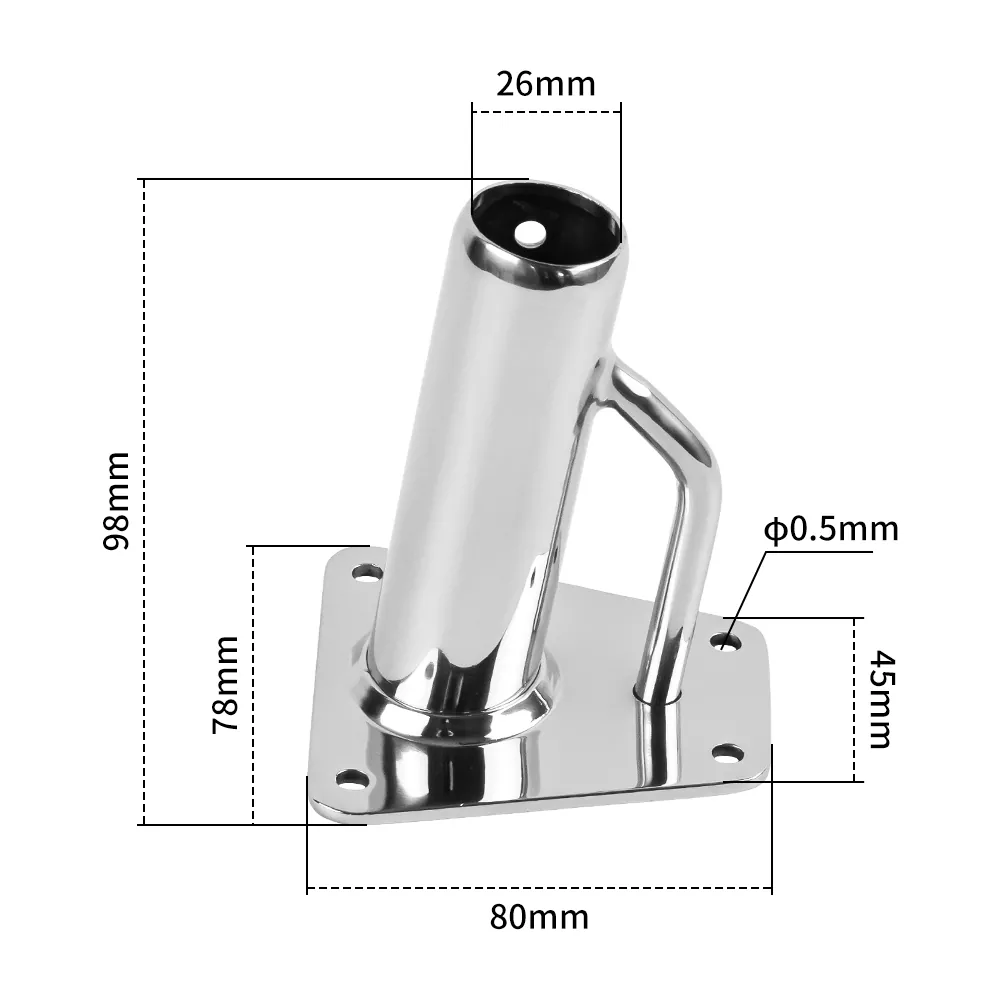

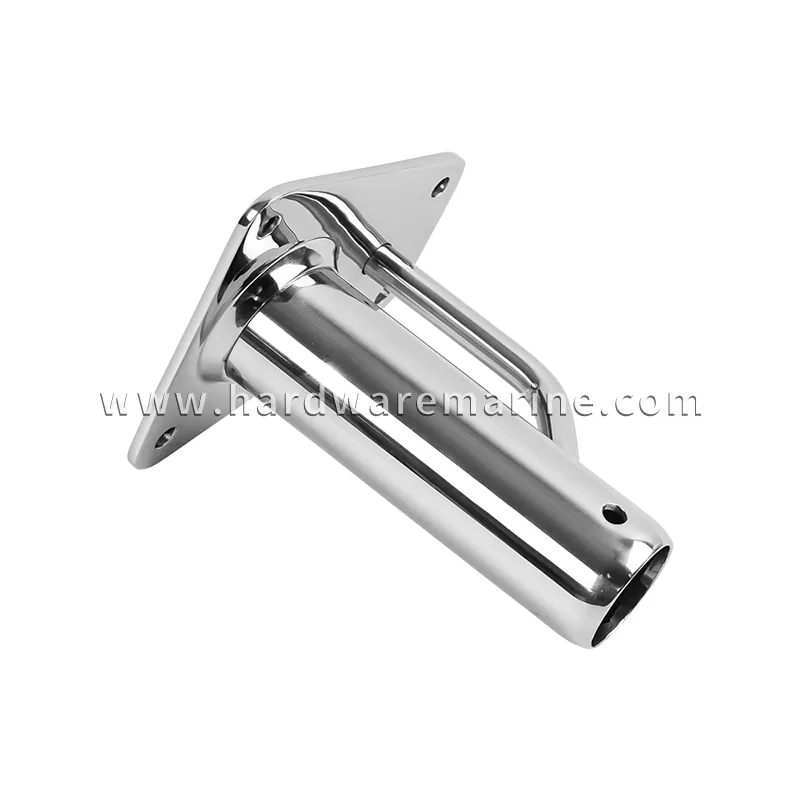

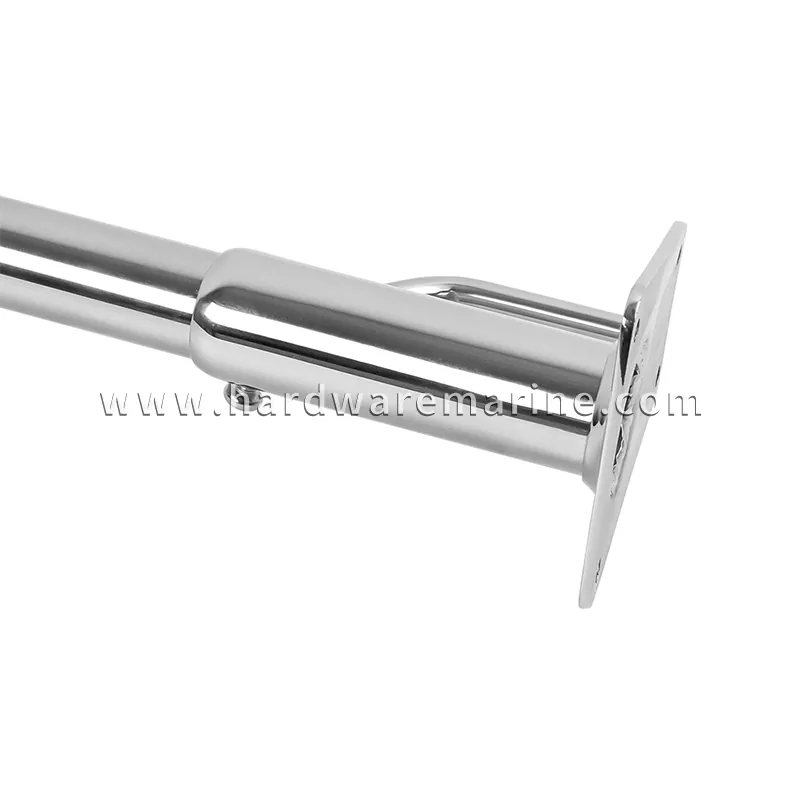

- The internal diameter accepts standard 1-inch (25.5mm) outer diameter (OD) marine tubing. It features a pre-drilled locking/set-screw hole near the top rim, allowing you to lock the inserted pipe firmly in place with a grub screw or pin to prevent accidental lift-out.
