ENGINEER TALKS Ep.12: Steering Wheel Sizing, Helm Clearance, and One-Handed Control

When designing or refitting a helm station, the steering wheel is often chosen primarily for its visual style or grip material.

Yet in daily sea trials and extended offshore passages, the steering wheel is the captain's primary physical connection to the vessel. An improperly sized wheel or poor helm clearance can quickly turn docking maneuvers into an awkward struggle—leading to pinched fingers against throttle binnacles, cramped knee room, or excessive arm fatigue during heavy weather.

This guide breaks down the practical ergonomics of marine steering wheels: how to balance wheel diameter (11" to 15.5") against steering system leverage, how to eliminate helm clearance interferences with flat versus dished wheels, and why a quality sealed-bearing speed knob is a critical factor in comfortable one-handed helm control.

1. Wheel Diameter & Steering Mechanics: Balancing Leverage vs. Rotational Speed

Marine steering wheels typically range in outer diameter from 11 inches (approx. 280 mm) up to 15.5 inches (approx. 395 mm). Choosing between a compact rim and a large-diameter wheel is an engineering trade-off between rotational speed (hand travel distance) and mechanical leverage (input torque).

A. Compact Wheels (11" to 13" / 280–330 mm): Agile & Space-Efficient

• Mechanical Characteristics: A smaller circumference reduces the physical distance your hand must travel during full rotation. This enables rapid helm corrections with minimal shoulder and elbow movement.
• Steering System Match: Best paired with hydraulic steering pumps or power-assisted helms where fluid pressure handles the steering load. This covers the majority of modern outboard-powered vessels with factory-installed hydraulic helm systems.
• Ideal Vessel Types: High-speed sport runabouts, compact center consoles, rigid inflatable boats (RIBs), and shallow-water flats skiffs where helm real estate is tight and instant maneuverability is prized.

B. Classic & Large-Diameter Wheels (13.5" to 15.5" / 340–395 mm): Maximum Mechanical Leverage

• Mechanical Characteristics: The longer moment arm (radius from hub center to grip rim) directly multiplies the rotational torque applied by the skipper.
• Steering System Match: Essential for mechanical rotary or rack-and-pinion cable steering systems, heavy twin-outboard setups without power assist, and displacement cruisers where rudder resistance increases significantly under load.
• Ideal Vessel Types: Offshore fishing vessels, family pontoon boats, deck boats, commercial workboats, and classic cruisers. On long, multi-hour passages, a larger wheel allows relaxed, two-handed resting grips that significantly reduce driver fatigue.

C. Lock-to-Lock Turns and Driver Fatigue

Most common marine hydraulic helm pumps typically require somewhere in the range of 3.5 to 5.0 full turns from hard-over port to hard-over starboard (lock-to-lock), depending on pump displacement and cylinder sizing.

• On a high-turn-count helm paired with a large 15.5" wheel, maneuvering in a tight marina requires substantial hand-over-hand winding.
• Conversely, putting an undersized 11" wheel on a heavy cable-steered boat can make close-quarters docking physically exhausting due to insufficient leverage.

The practical takeaway: match your wheel diameter to your steering system type first, then refine for console space and personal comfort.

2. Flat vs. Dished Wheels: Mastering Helm Clearance & Anti-Interference

Beyond outer diameter, the dish depth (offset between the center hub face and the grip plane) is a critical dimensional factor in helm console layout.

Flat Profile Wheels (0" Dish):

• Design Advantage: The grip rim sits directly on the same plane as the mounting hub, keeping the entire wheel as close to the console surface as possible.
• Best Application: Vertical dashboards, compact helm pods, and tight leaning posts where standing skippers need maximum walk-around room between the leaning post seat and the wheel.

Dished Profile Wheels (Shallow to Deep Dish):

• Design Advantage: The spokes angle forward from the hub, pushing the grip rim toward the driver.
• Best Application: Sloped helm consoles, seated driving positions, and setups requiring generous finger clearance behind the rim when wearing heavy offshore gloves.

The Three Critical Helm Clearance Watch-Points

When evaluating a steering wheel on a boat console, naval architects and refit technicians should verify three spatial boundaries:

• 1. Throttle Binnacle Pinch Point: The most common dangerous interference occurs on starboard-mounted control binnacles. When the throttle lever is pushed fully forward to cruising speed and the wheel is spun hard to starboard, there must be ample clearance between the wheel rim and the throttle head to prevent crushing the captain's knuckles.
• 2. Knee and Thigh Clearance: On dual-purpose helm seats with flip-up bolsters, check the bottom arc of the wheel. A large-diameter wheel installed on a low-angle steering helm can restrict thigh movement when transitioning between sitting and standing.
• 3. Multi-Function Display (MFD) Sightlines: A 3-spoke or 5-spoke wheel with an open top center provides clear sightlines to compasses, VHF radios, and digital engine monitors without requiring the driver to duck or stretch.

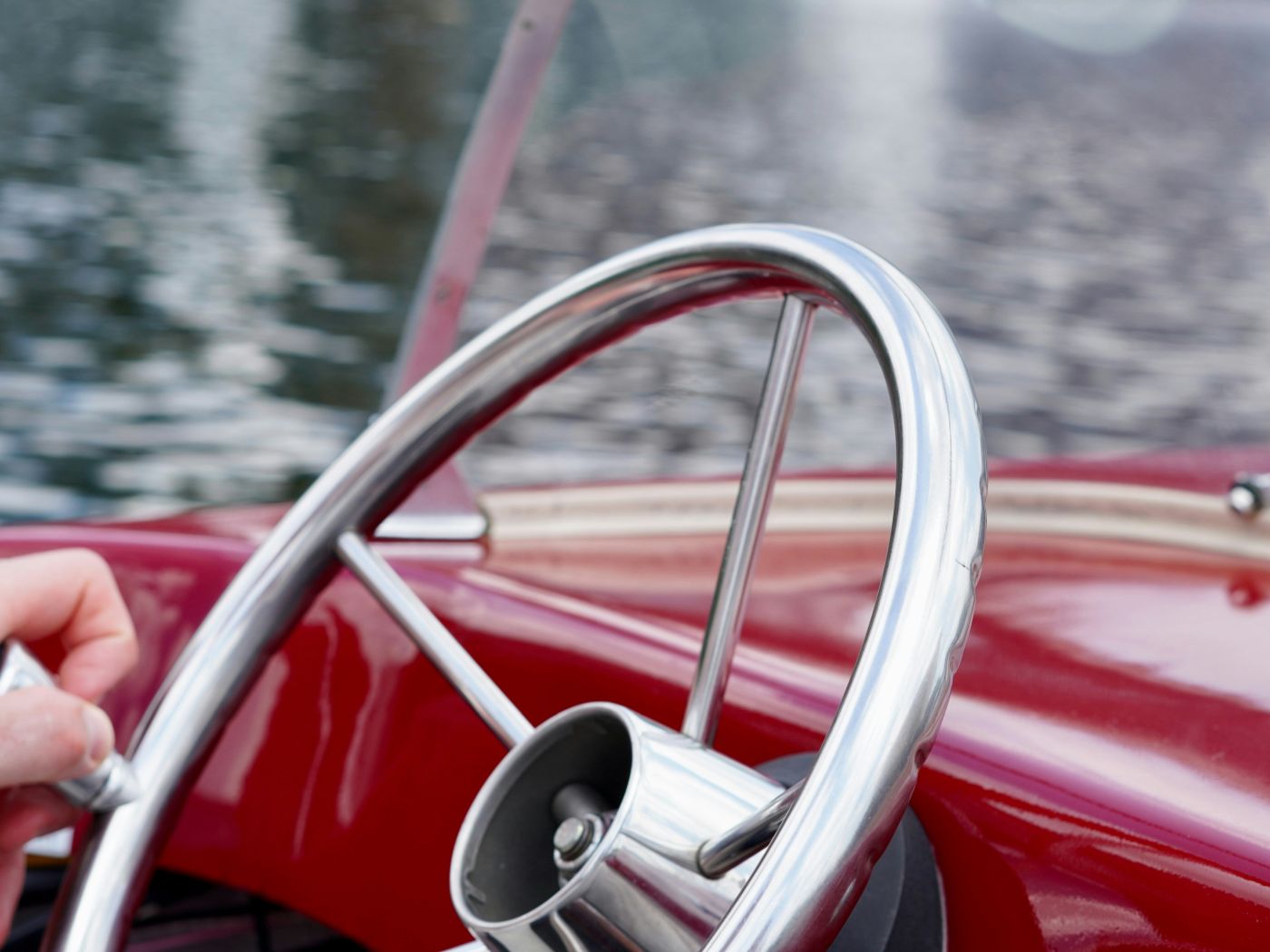

3. One-Handed Control & Speed Knob Ergonomics: Why Smooth Bearings Matter

On center console sportfishers, bay boats, and commercial vessels, a maneuvering speed knob (control spinner) attached to the steering wheel rim is standard equipment. It transforms two-handed cranking into effortless, one-handed palm control.

A. The Practical Value of a Speed Knob at Sea:

• Close-Quarters Docking: In stiff crosswinds or tight marina slips, maneuvering requires spinning the wheel rapidly from lock-to-lock while shifting engine throttles back and forth. A speed knob allows the skipper to whip the wheel hard-over with one palm while keeping the other hand locked onto the throttle/shifter binnacle.
• Offshore Trolling: While slow-trolling for pelagic gamefish, the captain frequently needs to adjust the helm with a quick flick of the wrist while looking aft at the outriggers and spread.
• Rough-Water Course Trimming: In choppy beam seas, quick corrective pulses are needed to keep the bow from falling off. The knob provides an anchor point for positive one-handed leverage.

B. The Difference Between Cheap Bushings and Dual Sealed 316 Bearings:

• Low-Cost Friction Bushings / Open Pivots: Budget aftermarket knobs rely on simple brass or plastic sleeve bushings. In an open saltwater environment, salt spray penetrates the pivot gap. As moisture evaporates, sodium chloride crystals form inside, grinding against the bushing and eventually seizing the knob solid. Furthermore, sleeve bushings tend to develop radial wobble (play) and produce annoying rattling sounds under engine vibration.
• Dual-Sealed 316 Stainless Steel Ball Bearings: Higher-grade marine wheels integrate twin precision ball bearings fabricated from marine-grade 316 stainless steel with dual elastomeric seals. This sealed architecture resists saltwater ingress, reduces grease washout, and delivers smooth, quiet rotation that remains consistent after extended saltwater exposure. In our workshop testing, sealed 316 bearing knobs maintain free-spinning performance significantly longer than open-bushing alternatives in continuous salt spray conditions.

C. Knob Placement and Safe Driving Technique:

• 10 O'Clock vs. 2 O'Clock Position: Right-handed throttlers typically place the knob at the 10 o'clock position, allowing their left hand to control steering while the right hand rests permanently on the throttle lever. Left-handed helm layouts use the 2 o'clock position.
• Open-Palm Spinning: When spinning the wheel rapidly, the operator rests the center palm against the knob crown rather than tightly wrapping fingers around it. This technique allows instantaneous release if a high-speed rudder deflection kicks the wheel back, reducing the risk of wrist strain.

4. Practical Vessel & Helm Matching Matrix

To simplify steering wheel selection for boatbuilders and refit specialists, the following reference table summarizes common industry sizing practices and general functional pairings across popular vessel categories. These ranges reflect widely adopted conventions—actual specifications should be confirmed against the specific helm system and console layout on each vessel.

A Note on Universal Helm Compatibility:

Regardless of wheel diameter or spoke style, virtually all professional marine steering wheels share a common mechanical interface: the 3/4-inch tapered shaft with Woodruff keyway. This standard is adopted universally across major marine hydraulic helm pump manufacturers, meaning any properly manufactured wheel with a standard 3/4" tapered hub bore will mount directly onto any standard marine helm system without adapters.

When sourcing wheels, verify that the hub bore is precision-machined (not as-cast) to ensure solid cone contact with the helm shaft and to minimize rotational play at the steering interface.
